EV Boat Battery 51.2V 96V 144V 15kW 20kW 30kW 60kW LFP Battery High Safety Lithium Iron Battery Pack for Marine

Contact Now

EV Boat Battery 51.2V 96V 144V 15kW 20kW 30kW 60kW LFP Battery High Safety Lithium Iron Battery Pack for Marine

╣PRODUCT DESCRIPTION

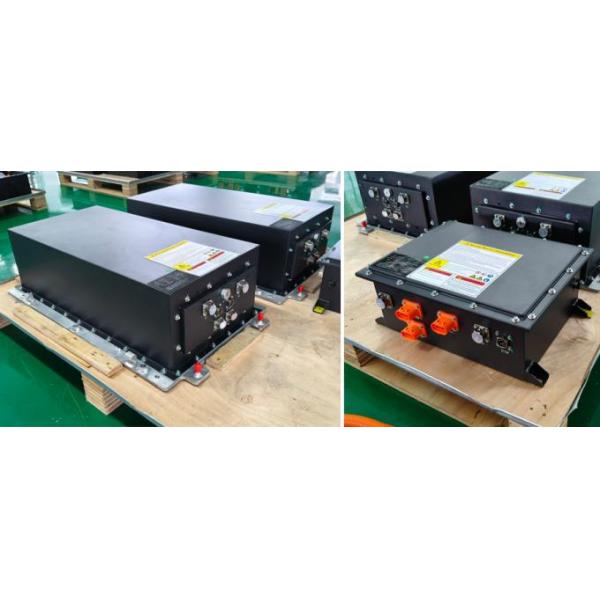

CTS 51.2V 280/314Ah Marine Lithium Battery Standard Module:

✅Built with LFP cells for HIGH SAFETY and LONG CYCLE LIFE..

✅Flexible series and parallel connection.

✅Supports both series and parallel connection for capacity or voltage expansion, meeting various marine power and endurance requirements.

✅Modular design ensures easy installation, maintenance, and system integration, ideal for yachts, fishing boats, passenger vessels, etc.

EV Boat Battery 51.2V 96V 144V 15kW 20kW 30kW 60kW LFP Battery High Safety Lithium Iron Battery Pack for Marine

MODEL	CTS51280
ELECTRICAL SPECIFICATIONS
Cell Type - Chemistry	A grade prismatic lifepo4 cell - 280Ah, 1P16S
Rated Capacity	280Ah/314Ah
Rated Voltage	51.2V
Energy	14.33kWh

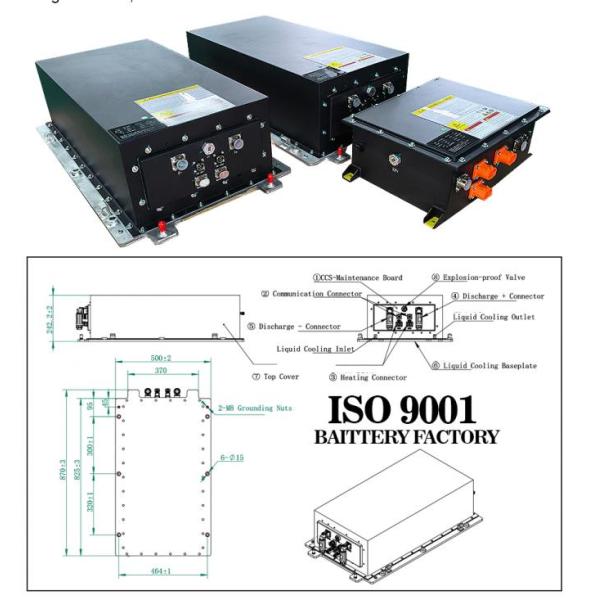

Dimensions (L x W x H)	L870W500H242mm
Weight	About 120Kg
Housing Material	Lower case aluminum alloy, upper cover stainless steel
Enclosure Protection	IP67
DISCHARGE/CHARGE SPECIFICATIONS
Discharge Cut-off Voltage	40V
Max Continuous Discharging Current(@25℃)	280A/314A max
Peak Discharge Current(@25℃)	750A for 15 seconds
Charging Limited Voltage	58.4V
Max Charging Current(@25℃)	150A(0.5C)
Recommend Charge Current (@25℃)	Less than 140A
TEMPERATURE SPECIFICATIONS
Charge Temperature Range	0~45℃
Discharge Temperature Range	-20~55℃
Recommended Operating Temperature	15~35℃
Storage Temperature & Humidity Range (Less than 1 month)	-20~35℃, 45~75%RH
Storage Temperature & Humidity Range (Less than 1 month)	-10~35℃, 45~75%RH
Recommended Storage Temperature & Humidity Range	15~35℃, 45~75%RH
Other
Cooling Method	Build in PI heating film, Build in liquid cooling plate

╣PRODUCT ADVANTAGES

✅ Grade-A LiFePO4 cells, with ≥6000 cycles lifespan, ensuring exceptional stability.
✅ Designed for marine applications, undergoing DNV certification, equipped with explosion-proof valve, heating input/output, and cooling support for harsh sea conditions.
✅ Standard module with PDU for controlling dual battery packs, supporting CCS1/CCS2 charging standards.
✅High-precision BMS for real-time voltage, current, and temperature monitoring, preventing overcharge,over-discharge, and thermal runaway.
✅ Comes with cables, charging socket, and other accessories for ready-to-use installation.

╣APPLICATIONS

CTS lithium battery Ideal for yachts, fishing boats, passenger vessels, workboats, and research ships for both propulsion and energy storage systems.
✅Series: Increase system voltage for high-power marine applications

✅Parallel: Increase total capacity for extended cruising range

✅Hybrid expansion supported for versatile marine system design

╣WHY CHOOSE US ?

* Professional 30+ senior engineers offer 24 hours online service and response within 30 min.
* 10000m² factories, 200 workers, 30 engineers and 4 production lines, 1GWH annual production capacity.
* One-stop customized service for 12V to 1000V battery system.
* 100% OQC testing with 25 detection contents.
* 14 years lithium battery designing and production experience.
* IATF16949 certified factory which ensure quality of products.
* One-Stop battery solution.
* Global on-site technical support.

Product Tags:
